DA1200V7+
DA1200V7

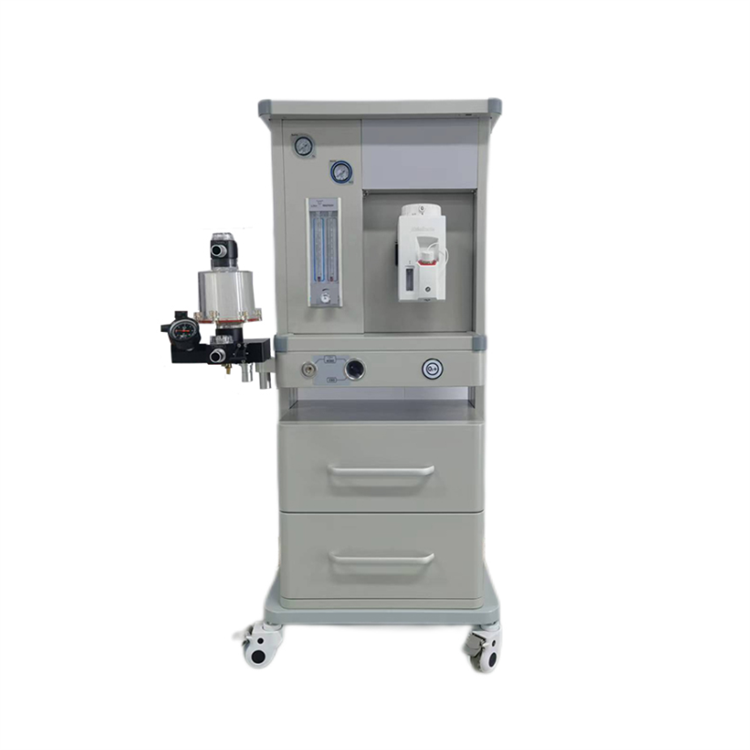

Dolphinmed veterinary anetsheisa workstation suitable for animal hospital,pet clinical and animal laboratory,This technical index of vet anesthesia workstation can meet the needs of general anesthesia and medical research on mice,cats,rabbits,monkeys,pigs,sheep and other animal,etc
Cantidad
Feature（veterinary anesthesia workstation）：
- Space saving compact design
- The non-breathing circuit interface is designed at the front of the machine, which is convenient for anesthetizing small animals
- Build-in battery,can continue working in case of power failure
- Anesthesias Gas soruce swtith design,keep operation at high efficient
- Top-light system
- Alloy frame, humanized handle, easily and conveniently move the machine to any place.
- Equipped with high precise Anesthesia Vaporizer.（Support Single or two vaporizer)
- Adopting stainless pressure gauge, both gas supply and working pressure could be monitored. The pressure range is 0-1MPa, reading scale is 0.05
- With special protection device for Power Socket and Standby Power Socket, so as to avoid any accidents;
- Audible O2.failure warning device
- Four Anti-static castors(2 with brakes)
- 2 large drawers with big storage space（support three drawer optional）
- Electro-pneumatic ventilator
- Common gas outlet（CGO)
- Ergonomics design to meet the animal clinical requirements,suit for lab .animal hosptial and scientic institute etc.
- Saml animal special bellow design
| Main Unit | |
| Working Mode | Closed,half-closed,half-open,Open |
| Driven mode | Gas driven |
| Application | 0.5-100kg animal |
| Anesthesia gas source switch | start or stop the gas source control |
| Pressure Gas Gauge | one is oxygen source pressure one is oxygen working |
| Anesthesia vaporizer | Iso,halo,sevo |
| Oxygen flush | 25L/min~75L/min |
| Airway pressure | 0.25Mpa~0.65Mpa |
（veterinary anesthesia workstation）
| Flow meter | |
| O2 Two tube flowmeter | Two tube:0~1L/min, 1~10L/min |
| Two tube:0~1L/min, 1~10L/min | |
（veterinary anesthesia workstation）
| CO2 Circle Absorer | |
| Integrated and sterilized at 134°C high temperature and high pressure. Visiable inspiration valve and expiration valve Safety valve pressure limit:6Kpa Quick change soda lime system Good air tightness,high reliability and minor respiratory impedance Manual/ventilation swith |
（veterinary anesthesia workstation）
| Vaporizer | |
| Iso,Sevo,Halo With safety lock device | |
| Concentration range | Iso 0.2 to 5% Halo 0.2 to 5% Sevo 0.2 to 8% |
| Flow range | 0.2 to 15L/min 0.2 to 10L/min(normal usage)for concentrations>5 vol% |
| Filling volume | about 340ml with dry wick about 300 ml with moist wick |
| Mounting type | selectatec compatible Cagemout cmpatiable(optional) |
| Filling type | Pour type Easy-fill(optioanal) Key-fill(optinal) |
