DA1200V7
DA1200 V7+

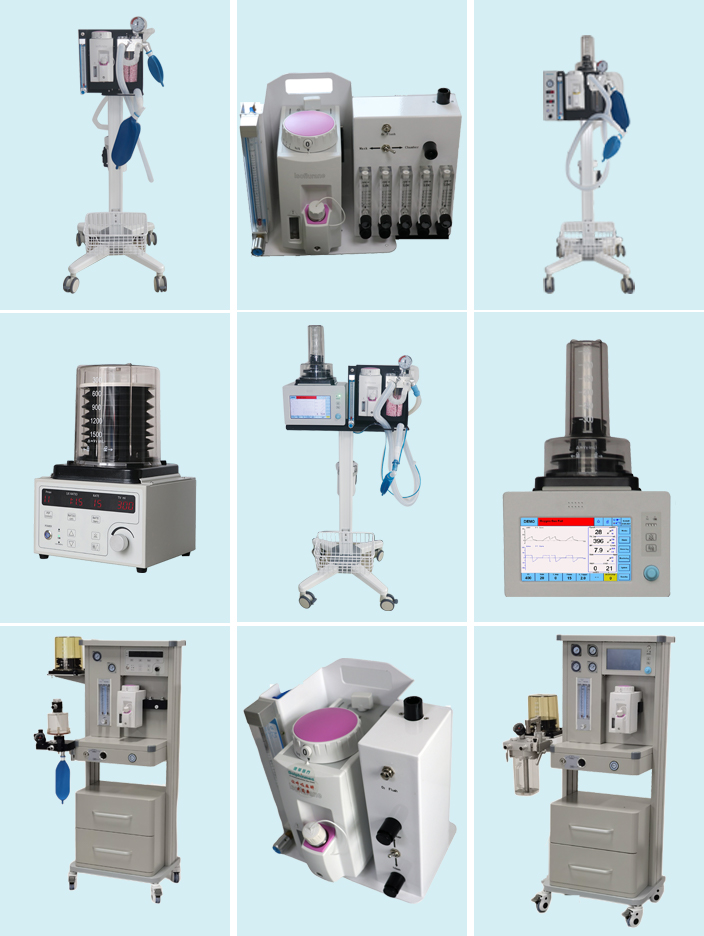

Dolphinmed veterinary anetsheisa workstation suitable for animal hospital,pet clinical and animal laboratory,This technical index of vet anesthesia workstation can meet the needs of general anesthesia and medical research on mice,cats,rabbits,monkeys,pigs,sheep and other animal,etc
Cantidad
Feature：
Flow meter：
O2 Two tube flowmeter
Two tube:0~1L/min,
1~10L/min ,
O2& Air Flowmeter Optioanl
O2&N2O& Air Flowmetr Optiaonl
Circle Absorer:
Integrated and sterilized at 134°C high temperature and high pressure.
Visiable inspiration valve and expiration valve
Safety valve pressure limit:6Kpa
Quick change soda lime system
Good air tightness,high reliability and minor respiratory impedance
Manual/ventilation swith
Anesthesia Ventilator
Small animal bellow design(0-300ml)
(300-2000ml)optional
Pneumatically driven and electrically controlled
Display:HD LCD digital display
Monitoring：Tidal volume,breathing rate,I:E ratio,Peak airway pressure,
TV:50~1600ml
Breathing rate:4~60bpm
I:E ration:1:1~1:4 adjustable
Upper airway pressure:2~6kpa
Lower airway pressure:0.5~2kpa
Battery low alarm
Battery no power indicator
Alarm Silence
Manuel/Auto Switch
Vaporizer:
Isoflrane，Sevolfuraen,Halothane
With safety lock device
Concentration range:
Iso 0.2 to 5%
Halo 0.2 to 5%
Sevo 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage)for concentrations>5 vol%
Filling volume for agent:about 340ml with dry wick
about 300 ml with moist wick
Mounting type:selectatec compatible
Cagemout cmpatiable(optional)
Filling type:Pour type
Easy-fill(optioanal)
Key-fill(optinal)
About Us
Marketing R&D Center: No. 15, Xijing Road, Zhongguancun Science and Technology Park,Shijingshan District Bejing
Manufacturing Center: Bulding 5,MEMS Industrial Park, No.158 Zhongrun Avenue, National High-tech Development Zone, Zibo,Shandong Province
Mobile/Whatsap/Wechat:+86-16601104668/+86-13121617686
Tel：86-10-53367875
E-mail：sale@dolphinmed.cn sale5,@dolphinmed.cn
- Space saving compact design
- Build-in battery，can continue working in case of power failure
- Anesthesias Gas soruce swtith design,keep operation at high efficient
- Top-light system
- Alloy frame, humanized handle, easily and conveniently move the machine to any place.
- Equipped with high precise Anesthesia Vaporizer.（Support Single or two vaporizer)
- Adopting stainless pressure gauge, both gas supply and working pressure could be monitored. The pressure range is 0-1MPa, reading scale is 0.05
- With special protection device for Power Socket and Standby Power Socket, so as to avoid any accidents;
- Audible O2.failure warning device
- Four Anti-static castors(2 with brakes)
- 2 large drawers with big storage space（spport three drawer optional）
- Electro-pneumatic ventilator
- Common gas outlet（CGO)
- Ergonomics design to meet the animal clinical requirements,suit for lab .animal hosptial and scientic institute etc.
- Saml animal special bellow design
Main Unit：
Working Mode：Closed,Semi-closed,，semi-open system，Open
Driven mode: Pneumatically driven manual controlled
Application:0.5-100kg animal
Anesthesia gas source switch:start or stop the gas source control
Pressure Gas Gauge:four press gauge;one is oxygen source pressure
one is oxygen working
Alarm parameter:Upper tidal volume alarm,low oxygen alarm,Apnea,Power failure
High precious anesthesia vaporizer,the agent output is continuous and stable, and precise.
the agent type: Iso, halo,sevo.
Oxygen flush：25L/min~75L/min
Airway pressure: O2:0.25Mpa~0.65Mpa
Power:220V±10%,50HZ±1% or 110V±10%,60HZ±1%
Driven mode: Pneumatically driven manual controlled
Application:0.5-100kg animal
Anesthesia gas source switch:start or stop the gas source control
Pressure Gas Gauge:four press gauge;one is oxygen source pressure
one is oxygen working
Alarm parameter:Upper tidal volume alarm,low oxygen alarm,Apnea,Power failure
High precious anesthesia vaporizer,the agent output is continuous and stable, and precise.
the agent type: Iso, halo,sevo.
Oxygen flush：25L/min~75L/min
Airway pressure: O2:0.25Mpa~0.65Mpa
Power:220V±10%,50HZ±1% or 110V±10%,60HZ±1%
Flow meter：
O2 Two tube flowmeter
Two tube:0~1L/min,
1~10L/min ,
O2& Air Flowmeter Optioanl
O2&N2O& Air Flowmetr Optiaonl
Circle Absorer:
Integrated and sterilized at 134°C high temperature and high pressure.
Visiable inspiration valve and expiration valve
Safety valve pressure limit:6Kpa
Quick change soda lime system
Good air tightness,high reliability and minor respiratory impedance
Manual/ventilation swith
Anesthesia Ventilator
Small animal bellow design(0-300ml)
(300-2000ml)optional
Pneumatically driven and electrically controlled
Display:HD LCD digital display
Monitoring：Tidal volume,breathing rate,I:E ratio,Peak airway pressure,
TV:50~1600ml
Breathing rate:4~60bpm
I:E ration:1:1~1:4 adjustable
Upper airway pressure:2~6kpa
Lower airway pressure:0.5~2kpa
Battery low alarm
Battery no power indicator
Alarm Silence
Manuel/Auto Switch
Vaporizer:
Isoflrane，Sevolfuraen,Halothane
With safety lock device
Concentration range:
Iso 0.2 to 5%
Halo 0.2 to 5%
Sevo 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage)for concentrations>5 vol%
Filling volume for agent:about 340ml with dry wick
about 300 ml with moist wick
Mounting type:selectatec compatible
Cagemout cmpatiable(optional)
Filling type:Pour type
Easy-fill(optioanal)
Key-fill(optinal)
