Veterinary anesthesia machine
DA1200V2
EXW,FCA,FOB
1 set
300set / Week
China
7Day
Dolphinmed delivery high precious veterinary anaesthesia equipment with ventilation manage system . It is suitable for animal hospital, pet clinic and animal laboratory. This technical index of animal anaesthesia machine can meet the needs of general anesthesia and medical research on mice, dogs, cats, rabbits, monkeys, pigs, sheep and other animals in animal laboratory.
Quantity

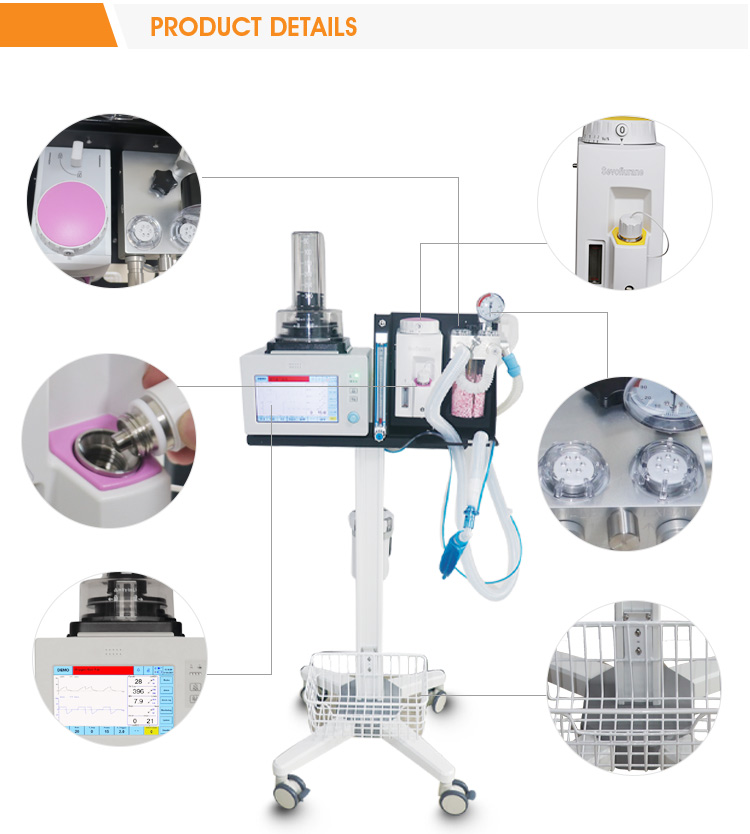

（portable anesthesia machine）
Feature：
1.Smart 9-inch touch screen; integrated anesthesia machine with ventilator
2.Respiration modes include PCV,VCV,SPONT,DEMO.Just set the weight, other parameters are automatically calculated
3.With Electric PEEP function
4.Animal-specific bellows design to meet the needs of clinical scientific research
5.The internal battery can be used for more than two hours
5.Suitable for small animals, Non-breathing circuit is available Selectatec-bar and quick change vaporizer mounting device
6.Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment
7.External for easily watch and replace soda lime
8.With Oxygen flush function to ensure that clinical anesthesia demand and oxygen supply demand Anaesthesia C02 absorber assembly has no dead angle design, fast anesthesia, short recovery and high precision.
9.The C02 absorber supports both open loop and closed loop anaesthesia design and provides independent access
10.Provide a special Pop-Off valve,unique design, it can connected to the exhaust gas recovery system and provide a continuous 2 cmH20 negative pressure for the respiration airbag /educing valve to prevent pressure to hurt the animal ensure the animal safety
11.Provides an accurate oxygen flow meter with a display range of 0 to 5LPM
12.Vaporizer: the output concentration is not affected by the change of flow, pressure and temperature accurate and reliable,equipped with safety locking device to prevent anesthetic leakage
13.Iso,sevo and halo vaporizer are optional
Technical Parameters
| Main unit | |
| Working mode | closed ,half-closed ,open ,half-open |
| Driving mode | Pneumatically and electrically |
| Application | Animal within 100kg |
| Vaporizer | Iso ,Sevo,Halo |
| Oxygen flush | 25L/min-75L/min |
| Gas source pressure | Oxygen 0.25Mpa-0.65Mpa |
| Airway Pressure | -30〜60CMH2O |

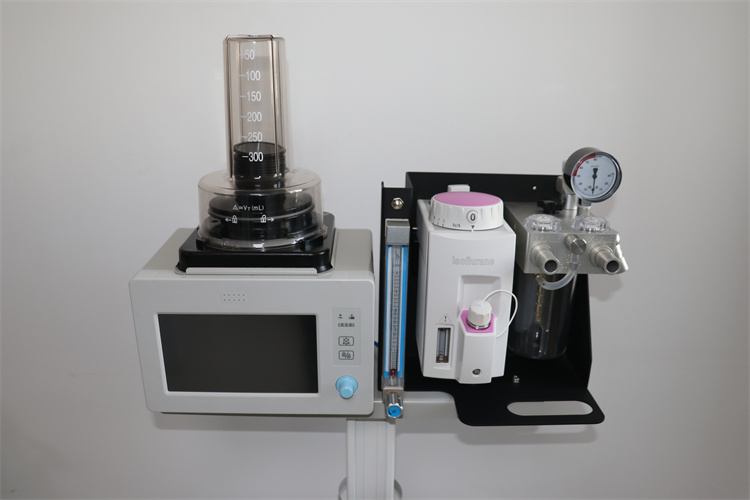

（portable anesthesia machine）
| Anesthesia Ventilator | |
| Breathing mode | VCV,PCV,SPONT,MANUAL,DEMO |
| Bellow | 50-300ml;300-1500ml |
| Screen | 9 inch touch screen |
| Waveform | Pressure,Flow,Volume |
| Loop | PV,PF,FV |
| Breathing rate | l-120bpm |
| I:E ratio | 9.9:1-1:9.9 adjustable |
| Inspiratory pause | 0-50% |
| PEEP | OFF,3-20cmH2O |
| Monitor | Tidal volume,breathing rate,spontaneous breathing rate, I:E,spontaneous minute ventilation,minute ventilation peak airway pressure, average airway pressure,PEEP,Inspiratory platform pressure,FIO2. |
| Alarm parameters | Tidal volume,minute ventilation volume,breathing rate, airway pressure, continuous airway pressure,neqative pressure alarm, apneaalarm.supply pressure failure alarm,power supply alarm, low battery alarm,battery empty alarm,oxygen battery failure alarm. FIO2(optional)，FICO2(optional) |
| Power supply | 220V±10%,50HZ±l%. |

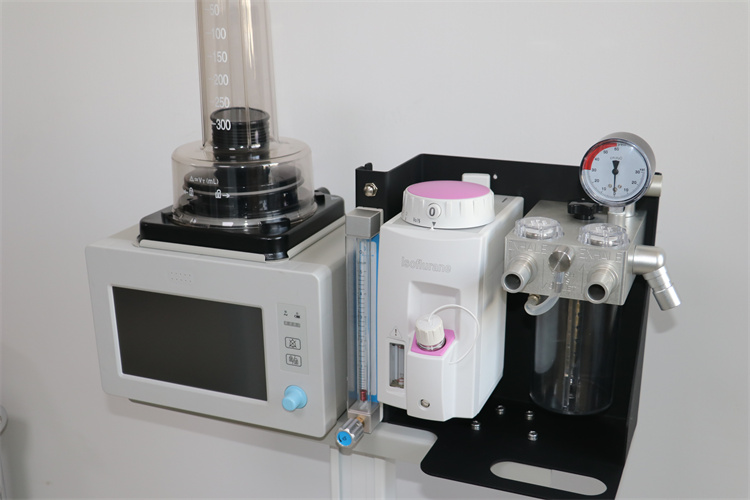

（portable anesthesia machine）
| Anesthesia Vaporizer | |
| Concentration range | Iso : 0.2-0.5% Sevo: 0.2-8% Halo : 0.2-5% |
| Flow range | 0.2-15L/min；0.2 to 10L/min(normal usage)for concentrations>5 vol% Filling volume for agent:about 340ml with dry wick；about 300 ml with moist wick |
| Mounting type | Selectatec compatible Cagemout cmpatiable(optional) |

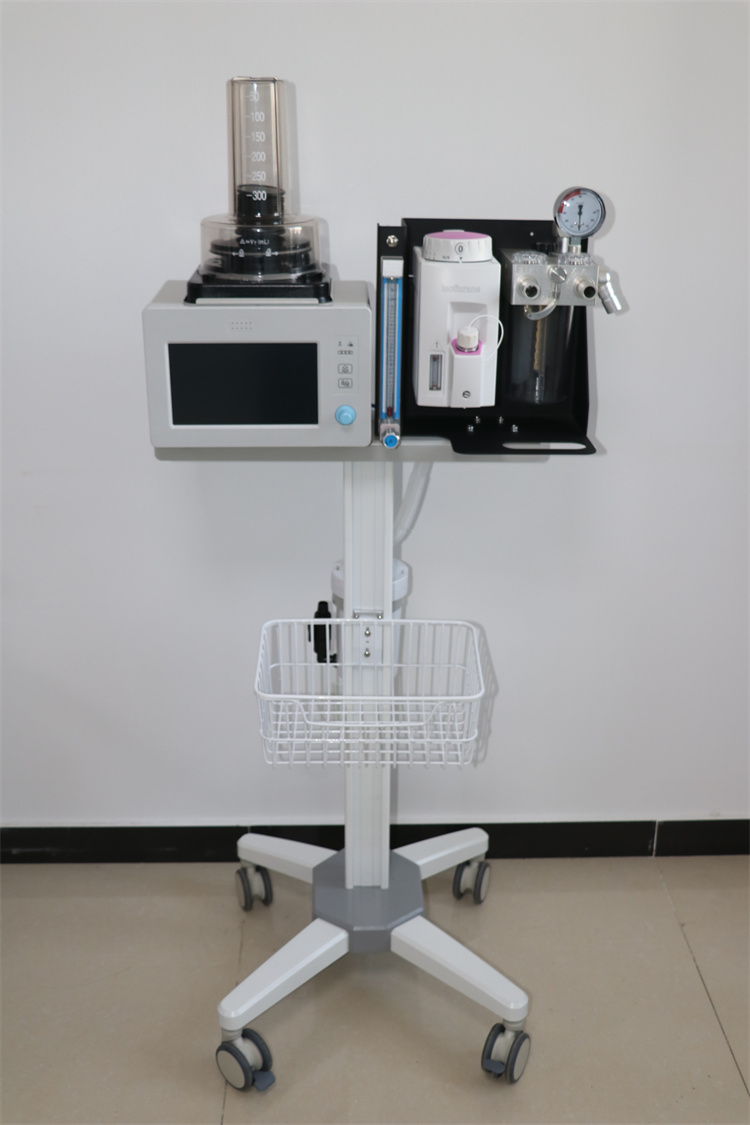

（portable anesthesia machine）
| Flow meter | |
| Oxygen flowmeter special for veterinary | |
| Flow range | 0-5L/min |

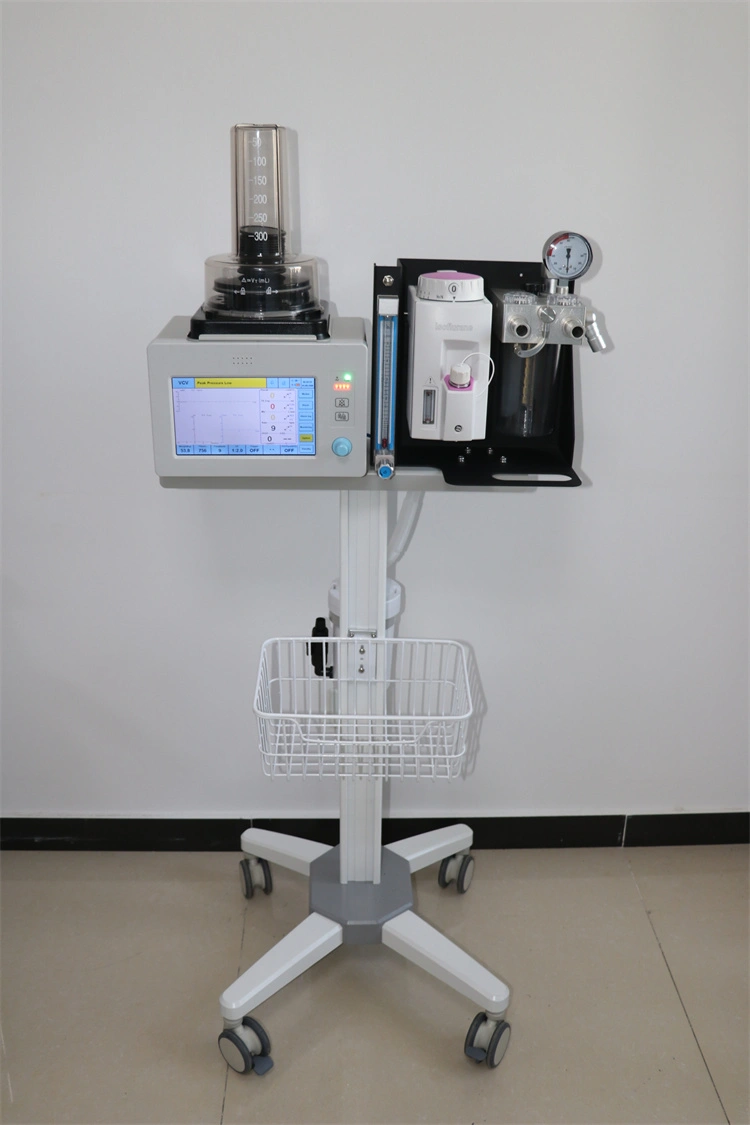

（portable anesthesia machine）
