Veterinary Anesthesia Vetilator
DAV60V
EXW,FCA,FOB
1 set
300set / Week
China
7Day
Specially user for big animal and small animal anesthesia ventilator,could widely apply in vet hospital,animal R&D institute,university laboratory,animal clinic，animal zoo,etc.
Quantity
Feature：
1.Compact and save the space
2.Light and easy to move,save animal hospital cost
3.With breathing mode IPPV,achieve the breathing automatically, assure the animal more comfortable

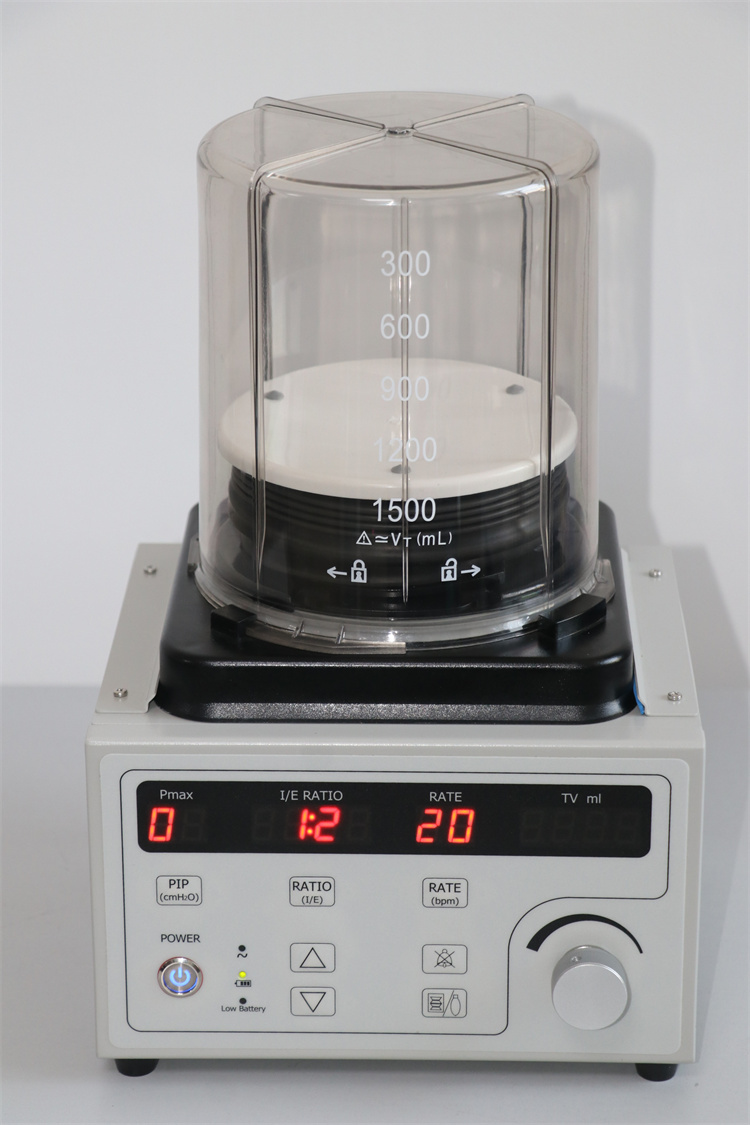

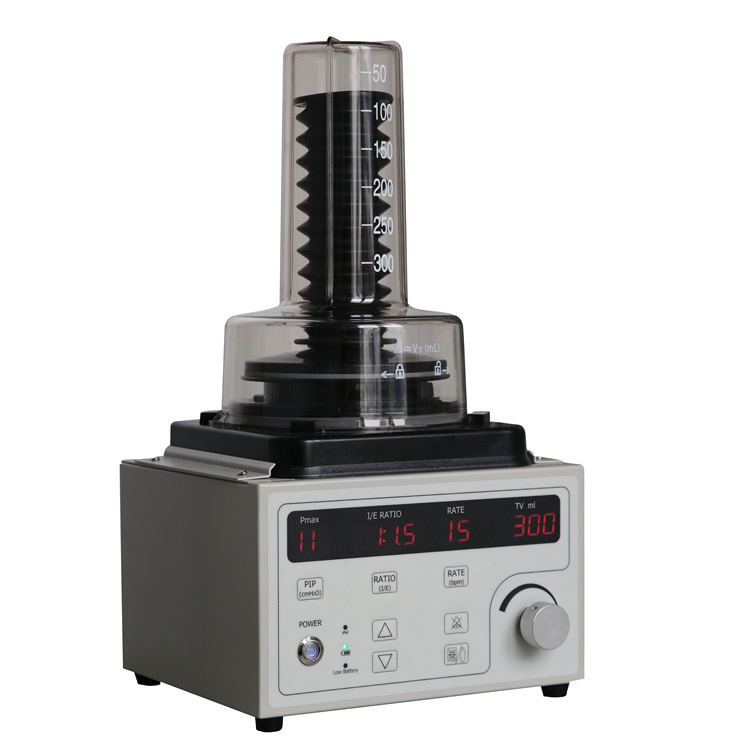

4.With big animal bellow and small animal bellow,specially for animal use
5.The gas source pipeline take the high precious gas source,no leakage forever LED digital display the important parameter
6.Set parameter at a key interface,very easy and simple to operate
7.Build in battery could continue more than two hours in case of power failure
8.Matching with different brand veterinary anesthesia machine
Technical Parameters
| Ventilation mode | IPPV,MANUAL |
| Bellow | 0-300ml , 50-1500ml |
| Driving mode | Pneumatically and electrically |
| Screen | LED digital display |
| Monitor | Tidal volume,breathing rate , I:E,peak pressure |
| Breathing rate | 4-60bpm |
| I:E ratio | 3:1,2:1,1.5:1,1:1,1:1.5,1:2,1:3 |
| Minute ventilation volume | No less than l8L/min |
| Airway pressure upper limit | 2-6kpa |
| Airway pressure lower limit | 0.6-2kpa |
