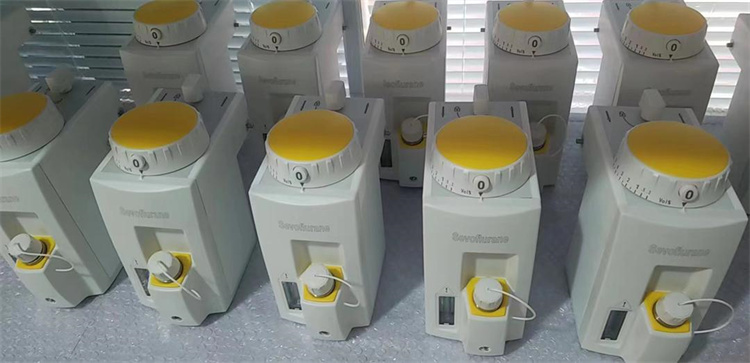

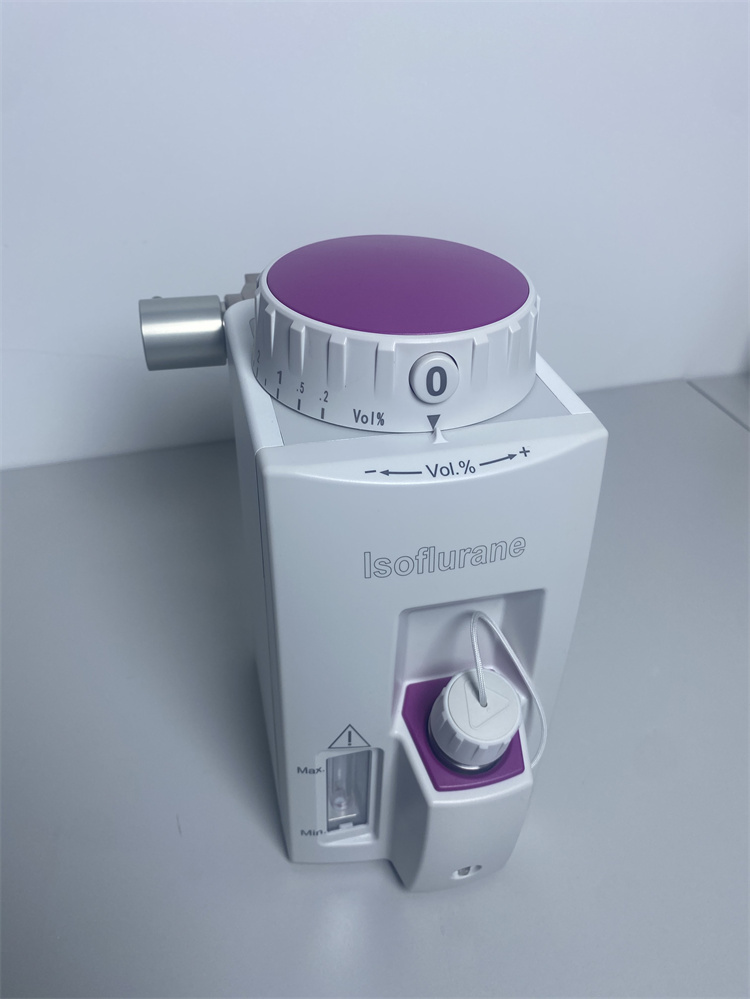

Anesthesia Vaporizer
Dvapo200plus
Delivery accurate concentrations in various complex situations based on the advanced temperature, flow and pressure compensation.
Quantity
Dolohinmed anesthesia vaporizer is Delivery accurate concentrations in various complex situations based on the advanced temperature, flow and pressure compensation.
Feature（anesthesia vaporizer）
1.52mm mounting type anesthesia vaporizer,special for Draeger or Blease anesthesia machine optional

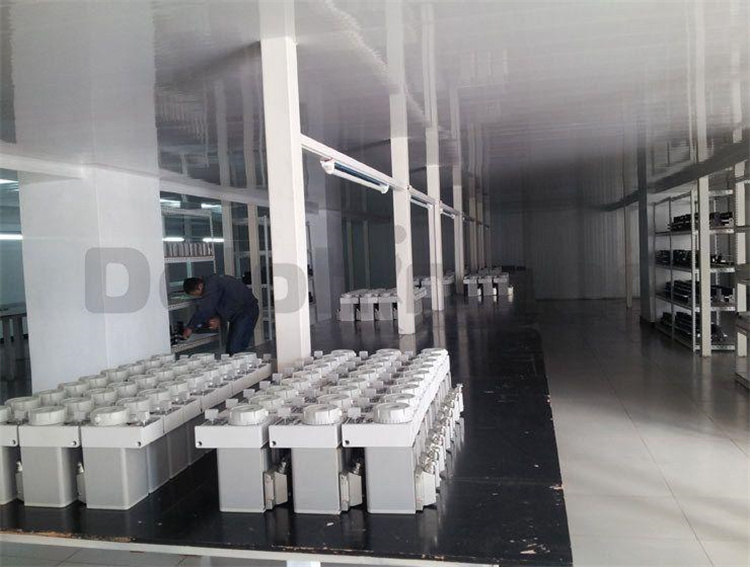

2.The vaporizer producer in China, supply to anesthesia machine manufactuer at domestic and abroad.
3.Adopts well selected high precision and super clean monobloc copper alloy, processes the tested structure pieces by numerical control, processed by fine treatment, rubbing, matching, rinsing and disinfection, complied with the highest industrial processing standard—Food Grade Standard
4.Gas filtration system adopts agglomeration copper, ensuring to supply clean gas to the patient and securing the patients safety to the maximum.
5.The internal key parts use imported materials with good air tightness.

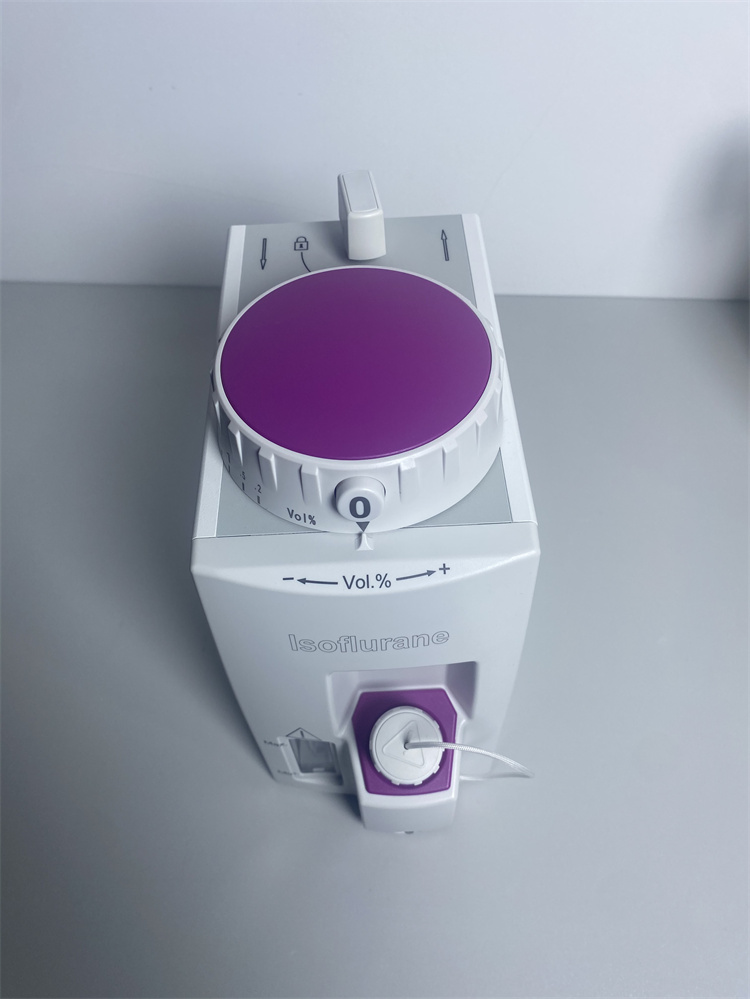

6.The big view window is convenient to observe drug usage levels.
7.Provide a reliable and safe solution in filler types and mounting types.
8.Designed sophisticated and produced strictly confirming to test standards;every vaporizer apply to international standard ISO8835-4.
9.Made by special high tech materials, which prove the vaporizer anti-corrosion from agent. Special rubber gaskets ,it can make sure agent leak-proofness and corrosion-resistant.
10.Safety locking device to prevent the anesthetic gas volatile accidentally
11.No need for regular maintenance to Dvapo vaporizer
Flowrate(L/min oxygen) Temperature°C
Flowrate influences at 20±3°C with oxygen flowing Temperature influences 5L/min with oxygen flow

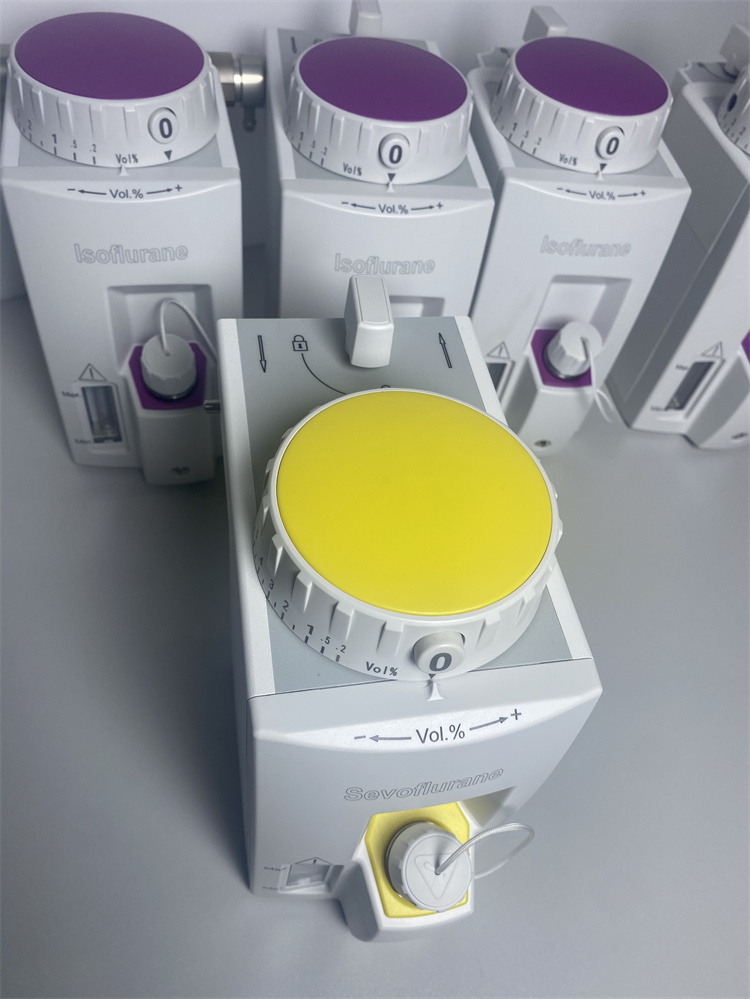

Concentration range:
Iso 0.2 to 5%
Halo 0.2 to 5%
Sevo 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage) For concentrations>5 vol%
Filling volume for agent:
About 340ml with dry wick
About 300 ml with moist wick
1.52mm mounting type anesthesia vaporizer,special for Draeger or Blease anesthesia machine optional
2.The vaporizer producer in China, supply to anesthesia machine manufactuer at domestic and abroad.
3.Adopts well selected high precision and super clean monobloc copper alloy, processes the tested structure pieces by numerical control, processed by fine treatment, rubbing, matching, rinsing and disinfection, complied with the highest industrial processing standard—Food Grade Standard
4.Gas filtration system adopts agglomeration copper, ensuring to supply clean gas to the patient and securing the patients safety to the maximum.
5.The internal key parts use imported materials with good air tightness.
6.The big view window is convenient to observe drug usage levels.
7.Provide a reliable and safe solution in filler types and mounting types.
8.Designed sophisticated and produced strictly confirming to test standards;every vaporizer apply to international standard ISO8835-4.
9.Made by special high tech materials, which prove the vaporizer anti-corrosion from agent. Special rubber gaskets ,it can make sure agent leak-proofness and corrosion-resistant.
10.Safety locking device to prevent the anesthetic gas volatile accidentally
11.No need for regular maintenance to Dvapo vaporizer
Flowrate(L/min oxygen) Temperature°C
Flowrate influences at 20±3°C with oxygen flowing Temperature influences 5L/min with oxygen flow
Concentration range:
Iso 0.2 to 5%
Halo 0.2 to 5%
Sevo 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage) For concentrations>5 vol%
Filling volume for agent:
About 340ml with dry wick
About 300 ml with moist wick

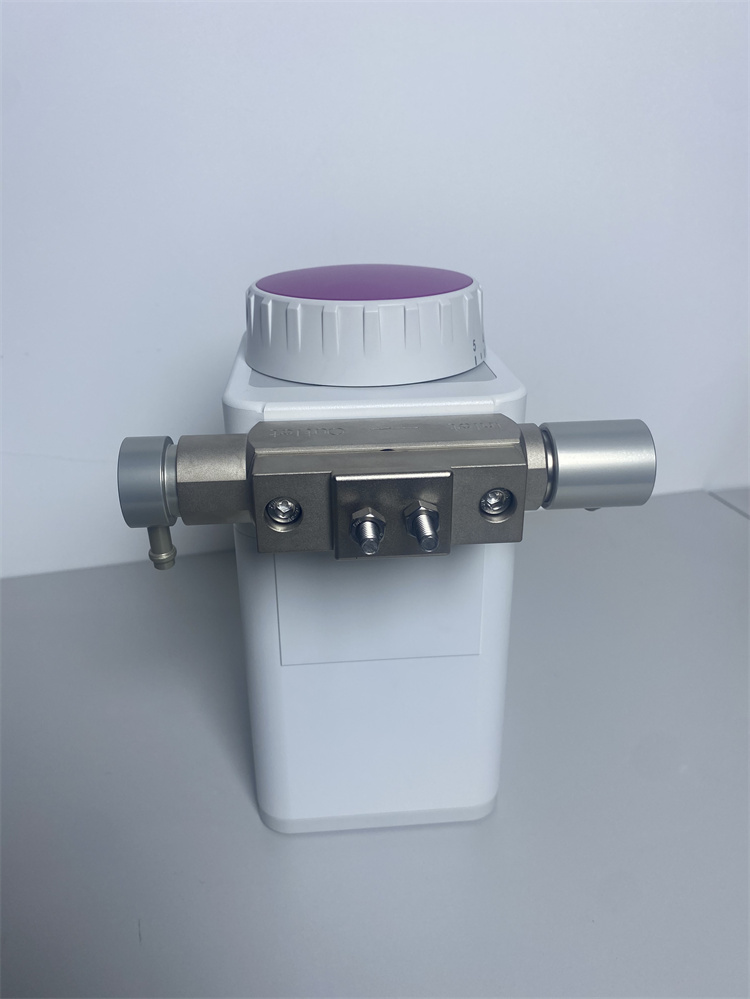

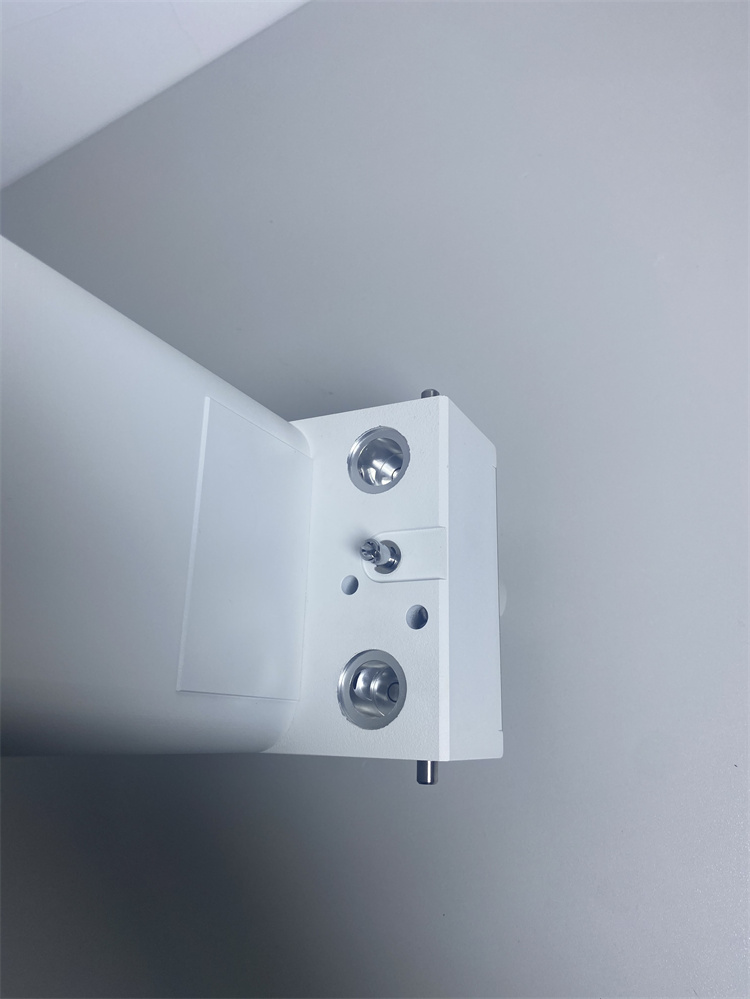

Selectatec
Cagemount（option）
Draeger plug in（option）
Filler type
Pour-fill
Easy-fill (option)
Quik -fill (only for sevflurane) (Option)
Operation environment
Flow meter:0.2~15L/min(0.2~1 OL/min For concentration>5%)
Temperature: 15~+35°C
Humidity:0~95%
Atmospheric pressure:70~106Pa
Storage/Transport environment
Temperature:-40~+65°C
Humidity:0~95%
Atmospheric pressure: 11.5-110Pa
